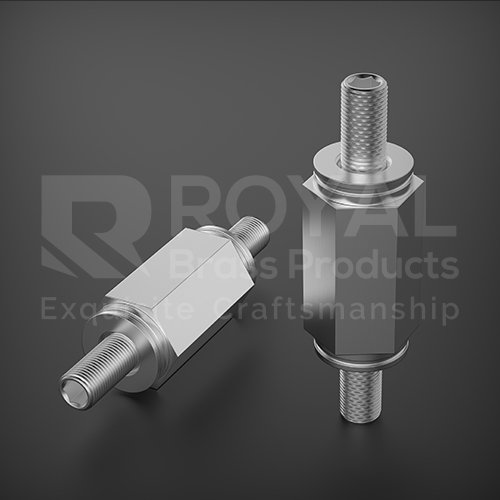

Via Assembly M10

Material:

Stainless Steel (SS304, SS316) or Carbon Steel with optional coatings like Zinc Plating, Nickel Plating, or Anodizing for corrosion resistance.

Thread Specifications:

Thread Size: M10 (Metric)
Thread Pitch: 1.5mm (Standard Metric Coarse Thread)
Thread Length: Customizable as per requirement
Thread Standard: ISO Metric Thread (DIN 13-1)

Dimensions & Design Features:

Hexagonal Body: Provides a secure grip for tightening.
Internal Hex Drive (Allen Key Socket): Allows for efficient torque application.
Double-Sided External Threads: Ensures strong and precise assembly.
Overall Length: Customizable based on application needs.
Diameter of Hex Body: Approx. 15mm-20mm (varies with design)

Material-Based Customization

Material	Tensile Strength (MPa)	Yield Strength (MPa)	Hardness (HRC)	Elongation (%)	Corrosion Resistance
Mild Steel (MS)	400 – 600	250 – 350	Oct-20	20 – 25	Low
Carbon Steel (C45)	600 – 1,000	400 – 600	20 – 30	15 – 20	Medium
Stainless Steel (SS304)	600 – 800	250 – 400	20 – 30	40 – 50	High
Stainless Steel (SS316)	700 – 1,000	300 – 500	25 – 40	35 – 45	Very High
Hardened Alloy Steel (EN8, EN19)	800 – 1,200	600 – 900	30 – 45	Oct-20	Medium

Heat Treatment Customization

Annealing: Increases ductility, reduces hardness.
Hardening & Tempering: Improves tensile strength and wear resistance.
Nitriding/Case Hardening: Enhances surface hardness (HRC 45-55 possible).

Custom Coating & Surface Treatments

Zinc Plating / Nickel Plating: Improves corrosion resistance.
Phosphating: Enhances wear resistance.
Black Oxide Coating: Provides mild corrosion protection.

Applications:

Used in electrical grounding, mechanical joints, and automotive applications.
Common in industrial machines, precision instruments, and structural fastenings.
Provides high torque resistance and vibration-proof assembly.

Final Mechanical Properties (As Per Custom Request)

Tensile Strength: 400 MPa to 1,200 MPa
Hardness: HRC 20-50 (depends on heat treatment)
Shear Strength: 60% of tensile strength
Elongation: 10% – 50% (higher for stainless steel)

Product Enquiry

For more details, please contact Royal Brass Products for pricing, bulk orders, and custom requirements. Royal Brass Products ensures top-notch service and unparalleled product quality.
