Brass Electrical Earthing Connectors

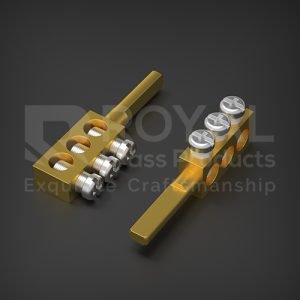

Neutral Link with Extended Lug /
Brass Earth Terminal Block with Extension Bar

Specifications

The Brass Neutral Link with Extended Lug or Brass Earth Terminal Block with Extension Bar is an essential component in electrical and grounding systems. It is used for distributing and connecting neutral or earth wires in panel boards, switchgear, and electrical distribution systems. These connectors ensure secure, reliable, and efficient electrical connections, reducing power loss and improving safety.

Common Names:

Brass Neutral Bar with Extension
Brass Earth Terminal Block
Brass Connector Block
Brass Neutral Link with Screw Terminals

Technical Specifications:

Parameter	Specification
Material	High-Quality Brass (Copper-Zinc Alloy)
Finish	Natural / Nickel-Plated / Tin-Plated
Current Rating	16A to 400A (Depending on Model & Size)
Voltage Rating	240V – 690V AC
Mounting Type	DIN Rail Mount / Base Mount / Screw Fixed
Number of Terminals	2 to 24 Way (Customizable)
Thread Size	M3 / M4 / M5 / M6 (As per requirement)
Extension Bar Length	Standard & Custom Sizes Available

Details

High Conductivity Brass – Ensures excellent electrical performance with minimal power loss
Corrosion Resistance – Available with nickel or tin plating for extended durability
Customizable Designs – Available in various sizes and configurations
Secure Connection – Precision-machined threads for strong screw terminal connections
High Mechanical Strength – Can withstand mechanical and thermal stress
Easy Installation – DIN rail mount or screw fixing for flexible installation options

Applications

Electrical Distribution Panels – Used for neutral and earth connections in panel boards
Switchgear & Control Panels – Ensures safe and secure electrical terminations
Industrial & Commercial Wiring – Used in factories, buildings, and power stations
Earthing & Grounding Systems – Provides an efficient earthing connection
Busbar Systems – Works as a connection point for power distribution networks

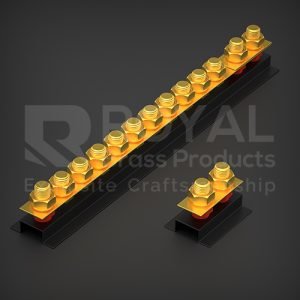

Brass Earthing Bar Connectors

Specifications

Brass Earthing Bar Connectors are essential components in electrical grounding systems, providing a reliable and low-resistance connection between electrical panels, grounding rods, and other protective systems. These bars are used in distribution boards, power stations, and industrial grounding setups to ensure electrical safety and stability.

Product Features

High Conductivity Brass: Ensures efficient electrical conductivity.
Strong Mechanical Strength: Robust design for high-load applications.
Anti-Corrosion Finish: Available in natural, tin-plated, or nickel-plated brass.
Multiple Connection Points: Designed for easy wiring and installation.
Secure Fastening: Heavy-duty brass nuts and bolts ensure a firm electrical connection.
Customizable Sizes: Available in various lengths, hole configurations, and mounting options.

Material Specifications:

Material: High-grade brass (CuZn39Pb3 / CW614N)
Surface Finish: Natural, Tin-Plated, Nickel-Plated, or Custom Finish
Screw Type: Brass or Steel with Zinc Plating
Thread Sizes: M6, M8, M10, or as per customer requirement
Mounting Base: Insulated or Non-Insulated Base Available
Length Options: Standard & Custom Sizes Available
Current Rating: Designed to handle high electrical loads efficiently

Details

Customization & OEM Manufacturing

Custom hole patterns, sizes, and plating options available.
Bulk production for electrical manufacturers and panel builders.
Engineering support for unique specifications and custom solutions.

Compliance & Standards:

RoHS & REACH Compliant – Safe for electrical and environmental use
ISO 9001 Certified Manufacturing – Ensuring precision and quality
IEC 61439 Standard Compliant – Meeting electrical distribution standards
UL & CE Certification Available on Request

Applications

Electrical Panels & Power Distribution Boards
ndustrial & Commercial Grounding Systems
Renewable Energy Systems (Solar, Wind)
Electrical Safety & Surge Protection Systems
Telecommunication & Data Centres

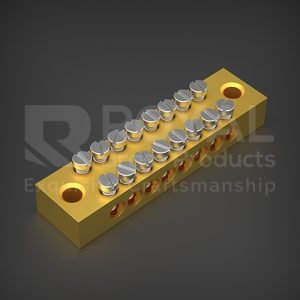

Brass Busbars & Terminal Blocks

Specifications

Material: High-grade brass (CuZn39Pb3 / CW614N)
Plating Options: Tin, Nickel, Silver, or Unplated
Screw Type: Steel / Brass Screws with Zinc Plating
Thread Sizes: M2 to M12
Insulation Options: Available with insulated bases for secure mounting

Details

High Conductivity Brass: Ensures low resistance and efficient current flow.
Corrosion Resistance: Nickel or tin plating available for durability.
Multiple Connection Points: Allows for structured power distribution.
Customizable Configurations: Available in various hole patterns and mounting options.
Mechanical Strength: Rigid and durable to withstand electrical loads.

Applications

Power Distribution Panels
Control Panels & Switchgear
Renewable Energy Installations
Industrial & Electrical Distribution

Product Enquiry

For more details, please contact Royal Brass Products for pricing, bulk orders, and custom requirements. Royal Brass Products ensures top-notch service and unparalleled product quality.
