Brass Fittings

Brass PE Fittings

Parameter Description
Material Brass (CW614N / CW617N / IS 319 / Free Cutting Brass / DZR Brass / Lead-Free Brass)
Process CNC Turning, Milling, Drilling, Tapping, Knurling, Slotting, Grooving
Tolerance As low as ±0.01 mm (based on drawing & requirement)
Finish Options Natural Brass, Nickel Plated, Chrome Plated, Tin Plated, Gold Plated
Thread Standards Metric, BSP, BSPT, NPT, UNC, UNF or as specified
Size Range As per customer design (From micro components to large parts)
Packing Bulk, custom-labeled, export-grade packaging
Standards RoHS Compliant, ISO 9001, Customer-Specific Standards
  • Precision-machined for tight and secure connections with PE pipes.
  • Resistant to corrosion, scale formation, and mineral deposits.
  • Suitable for underground and exposed installations.
  • Easy to install — requires minimal tools and labor.
  • Manufactured under stringent quality control standards to ensure leak-free performance.
  • Customizable threads, body shapes, and finishes available on request.
  • Agriculture – Drip and sprinkler irrigation systems
  • Plumbing – Domestic water lines, pipeline extensions
  • Gas Lines – LPG / Natural gas distribution in residential & commercial setups
  • Industrial – Air, oil & chemical transfer lines
  • Water Filtration – RO units and treatment plants
  • Infrastructure – Underground utility and fluid distribution systems

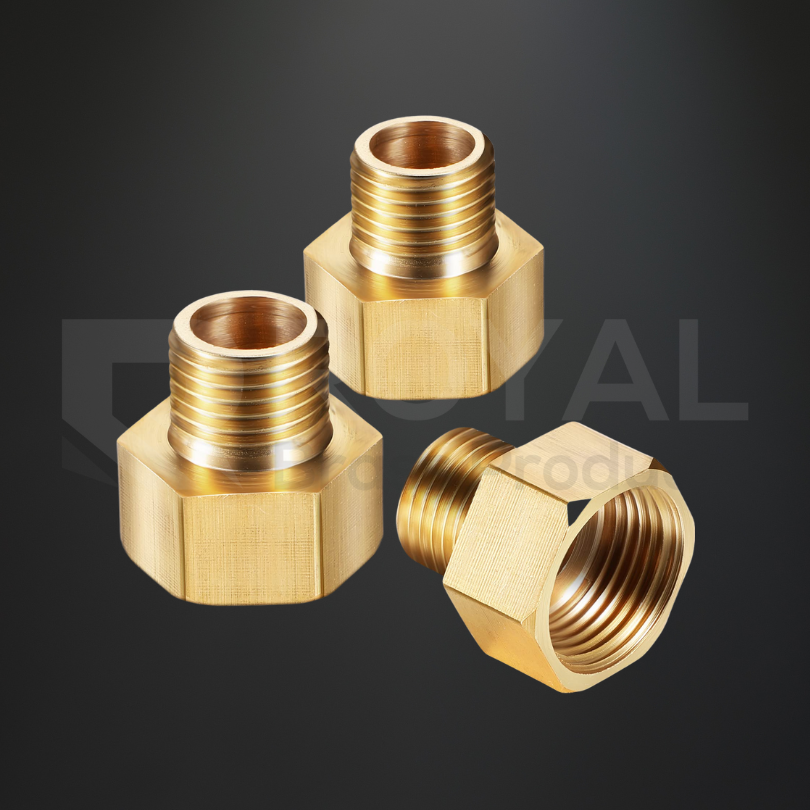

Brass Transition Fittings

Parameter Description
Material High-Quality Brass (CW617N / CW614N / IS Standard)
Type Transition from Metal to PE / PEX / PVC / CPVC Pipes
Connection Ends One End Threaded (BSP / NPT), Other End Compression / Socket
Thread Type BSP / BSPT / NPT (Male / Female)
Working Pressure Up to 25 Bar
Temperature Range -20°C to +120°C
Available Sizes 1/4” to 2” (Custom sizes on request)
Finish Options Natural Brass / Nickel Plated / Chrome Plated
Compliance ISO / DIN / ASTM / Customized as per drawings

At Royal Brass Products, we manufacture high-performance Brass Transition Fittings that ensure strong, leak-free connections between metal and plastic piping systems. These fittings are designed to transition from brass or GI (metal) pipes to PE, PEX, CPVC, or PVC pipes with ease and efficiency.

  • High-Quality Brass Construction – Offers durability, corrosion resistance, and extended service life
  • Dual-End Design – One threaded end and one compression/socket end for smooth material transitions
  • Leak-Proof Performance – Precision threading and tight sealing prevent leakage
  • Multiple Sizes & Configurations – Available in standard and custom dimensions
  • Weather & Pressure Resistant – Performs reliably in harsh and underground environments
  • Custom Finishes Available – Natural brass, nickel-plated, or chrome-plated finishes
  • Residential Plumbing: Transition between copper/brass to CPVC, PEX, or PE piping.
  • Gas Systems: Secure connections for LPG and natural gas lines.
  • Irrigation Networks: Connecting plastic lines to brass or GI piping in agricultural systems.
  • Water Supply Systems: Suitable for potable water connections and distribution lines.
  • HVAC Installations: Used in heating and cooling system pipe transitions.
  • Industrial Pipelines: For fluid handling where mixed pipe materials are used.

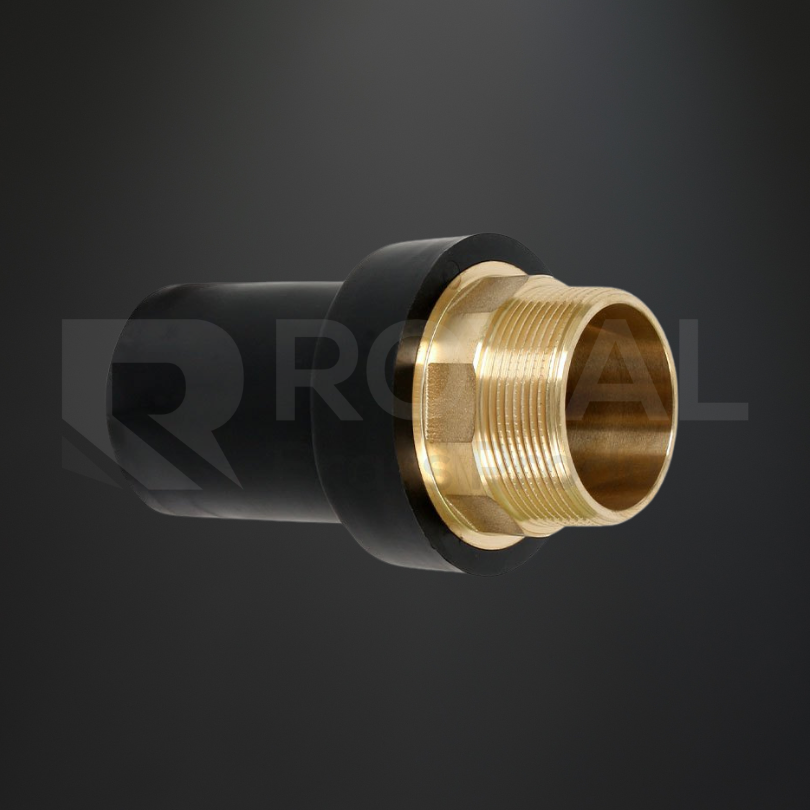

Brass Electrofusion Fittings

Parameter Description
Material High-Grade Brass Insert + PE Body (Polyethylene Outer Shell)
Fitting Types Elbow, Tee, Coupler, Reducer, End Cap, Threaded Adapter
Thread Types BSP / BSPT / NPT (Male / Female)
Welding Type Electrofusion using embedded resistance wires
Operating Pressure Up to 16 bar (varies by application & size)
Temperature Range -10°C to +60°C
Size Range 20mm to 110mm (larger sizes available on request)
Compliance ISO 17885 / EN 12201 / ISO 4437 or customer specification
Finish Smooth PE finish with visible weld indicators & brass reinforcement
Application Media Natural Gas, LPG, Water, Chemicals, Compressed Air

At Royal Brass Products, we offer precision-engineered Brass Electrofusion Fittings designed to deliver secure, leak-free, and high-strength connections in polyethylene (PE) piping systems. These fittings are embedded with brass inserts and integrated with electrofusion technology to ensure strong mechanical bonding with unmatched sealing integrity.

Products Key Features & Benefits:

  • High-Precision Brass Inserts for improved strength and conductivity
  • Secure Electrofusion Welds ensure long-term, leak-proof performance
  • Corrosion-Resistant materials suitable for underground and harsh conditions
  • Compatible with PE Pipes used in gas, water, and industrial lines
  • Fast & Easy Installation using electrofusion welding machines
  • Custom Sizes & OEM Options Available
  • Gas Distribution Networks – Natural gas and LPG piping
  • Potable Water Systems – Leak-proof underground water lines
  • Industrial Fluid Transport – Compressed air and chemical fluid systems
  • Municipal Infrastructure Projects
  • Irrigation and Agricultural Lines
  • Pressure Piping Systems in Buildings

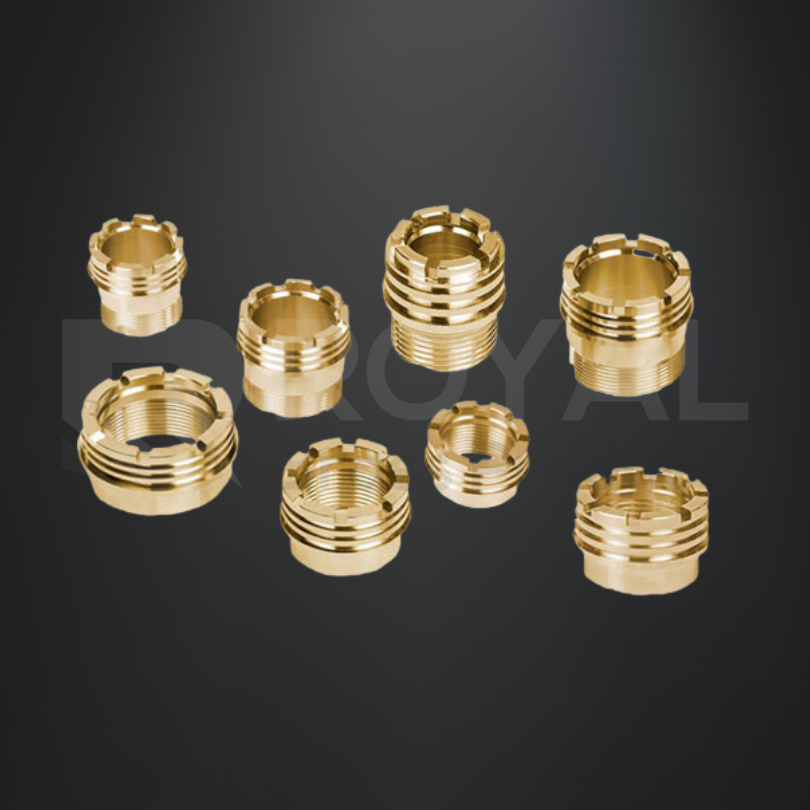

Brass Inserts (Male & Female)

Parameter Description
Material Free-Cutting Brass IS 319 / CW614N / CW617N or as per customer specification
Type Male Thread Inserts & Female Thread Inserts
Knurling Options Straight, Diamond, Hexagonal, Cross-Knurl
Thread Standards Metric (MM), BSP, BSPT, UNC, UNF, NPT (Male/Female)
Finish Natural Brass / Nickel Plated / Chrome Plated / Tin Plated
Size Range M2 to M12, 1/8” to 1/2” (custom sizes available)
Installation Methods Heat fit, Ultrasonic, Mold-in, Press-fit
Tolerance ±0.05 mm or as required
Packing As per customer requirement (bulk or customized pack)
Compliance RoHS Compliant, ISO Standards

At Royal Brass Products, we manufacture high-quality Brass Inserts (Male and Female) designed to provide secure and long-lasting threaded connections in plastic components. These inserts are widely used in injection molded parts to ensure strong mechanical joints where metal-thread reinforcement is required.

Product Key Feachers & Benifits:

  • Precision-Cut Threads for smooth fastening and repeatable performance
  • Strong Knurling Grip ensures maximum torque and pull-out resistance
  • Male & Female Variants available in a wide range of sizes and threads
  • Corrosion-Resistant Brass for durability across all environments
  • Easy to Install in thermoplastics and thermoset materials
  • Custom Manufacturing as per drawings or application requirements
  • Plastic Moulding Components
  • Electrical Switches and Housings
  • Automotive Plastic Parts
  • Consumer Appliances
  • Electronics Enclosures
  • Furniture & Modular Fittings
  • Medical Device Components
  • LED and Lighting Fixtures

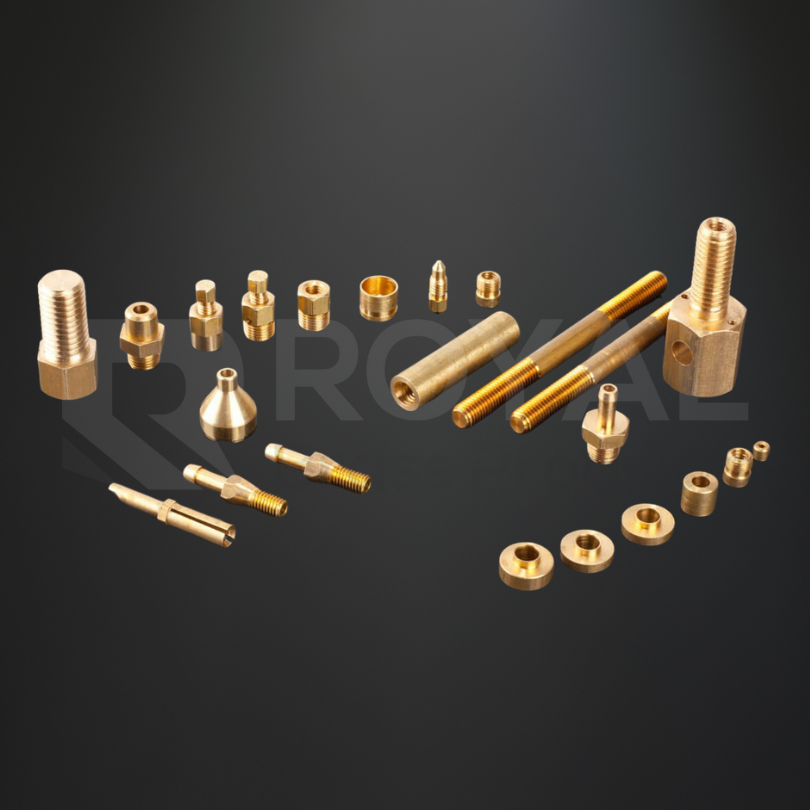

Custom Machined Brass Components





ParameterDescription
MaterialBrass (CW614N / CW617N / IS 319 / Free Cutting Brass / DZR Brass / Lead-Free Brass)
ProcessCNC Turning, Milling, Drilling, Tapping, Knurling, Slotting, Grooving
ToleranceAs low as ±0.01 mm (based on drawing & requirement)
Finish OptionsNatural Brass, Nickel Plated, Chrome Plated, Tin Plated, Gold Plated
Thread StandardsMetric, BSP, BSPT, NPT, UNC, UNF or as specified
Size RangeAs per customer design (From micro components to large parts)
PackingBulk, custom-labeled, export-grade packaging
StandardsRoHS Compliant, ISO 9001, Customer-Specific Standards



At Royal Brass Products, we specialize in manufacturing Custom Machined Brass Components tailored to your exact design, function, and tolerance needs. Using advanced CNC, VMC, and turning machines, we deliver high-precision parts that meet the stringent demands of industries worldwide.

Product’s Key Features & Benifits:

  • Made-to-Order Precision – Manufactured as per customer drawings, samples, or 3D models
  • Advanced Machining Capabilities – CNC, VMC, and automatic turning for complex geometries
  • Material Flexibility – Multiple brass grades available including CW614N, CW617N, IS 319, and more
  • Exceptional Accuracy – Dimensional tolerances up to ±0.01 mm
  • Post-Machining Services – Plating, knurling, threading, drilling, tapping, and polishing
  • OEM & Volume Production Support – Small to large batch runs with consistent quality
  • Automotive Parts and Fittings
  • Electrical & Electronics Assemblies
  • Gas & Plumbing Components
  • Hydraulic & Pneumatic Systems
  • Medical Equipment & Devices
  • Telecommunication Hardware
  • Renewable Energy & Solar Systems
  • Appliances, Locks, Furniture Fittings
  • Aerospace & Defense Subassemblies

Product Enquiry

For more details, please contact Royal Brass Products for pricing, bulk orders, and custom requirements. Royal Brass Products ensures top-notch service and unparalleled product quality.

Write Us for More Details

Our wide range of capabilities allows for economical, high quality production of metal components. At Royal Brass Products, our precision-engineered brass components power a wide range of industries, ensuring reliability, durability, and top-notch performance. From automotive applications that demand strength and conductivity to electrical and electronics sectors requiring precision and safety
