| Parts under Grounding Electrodes | Characteristics |
|---|---|
| Copper Bonded Ground Rod | Material: High-strength steel core with copper bonding Coating Thickness: 250-254 microns Diameter: 12.7mm – 25mm Length: 1.2m – 3m Thread Type: UNC / BSP Application: Used for electrical grounding in power distribution, telecommunications, and industrial grounding applications. |
| Solid Copper Ground Rod | Material: Pure copper Diameter: 12mm – 25mm Length: 1m – 3m Application: Ideal for highly corrosive environments and premium electrical conductivity. |
| Copper Grounding Strip | Material: Copper Thickness: 3mm – 6mm Width: 20mm – 50mm Length: 1m – 3m Application: Used for grounding and earthing applications in industrial setups. |
| Copper Bonded Coupler | Material: High-conductivity brass/copper alloy Thread Type: Internal threading for rod connection Application: Connects multiple ground rods for extended grounding networks. |
| Grounding Clamps & Accessories | Material: Copper/Brass/Aluminum Size Range: Suitable for different conductor diameters Application: Provides secure connection between grounding rods and conductors. |
| Graphite & Copper Bonded Earth Electrode | Material: Copper bonded with graphite fill Outer Diameter: 50mm – 100mm Length: 1m – 3m Application: Used in areas with high soil resistivity for enhanced grounding. |
Performance Characteristics:

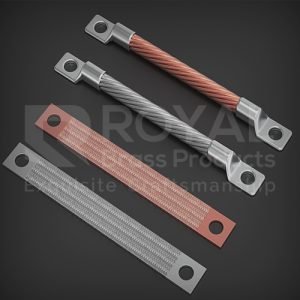

Braided bonds are essential grounding and electrical bonding components used in industrial, electrical, and automotive applications. They provide high flexibility, low resistance, and excellent conductivity.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Material | Copper (Bare/Tinned) / Aluminum |
| Cross-section | 10 mm² – 240 mm² |
| Width | 10 mm – 50 mm |
| Thickness | 0.5 mm – 3 mm |
| Length | 100 mm – 1000 mm (custom available) |
| Current Carrying Capacity | Up to 500A (varies by size and material) |
| End Terminal Type | Pressed, welded, or soldered copper/aluminum lugs |
| Insulation | PVC/Heat Shrink (optional) |
Construction:
Material Options:
Applications:
For more details, please contact Royal Brass Products for pricing, bulk orders, and custom requirements. Royal Brass Products ensures top-notch service and unparalleled product quality.
